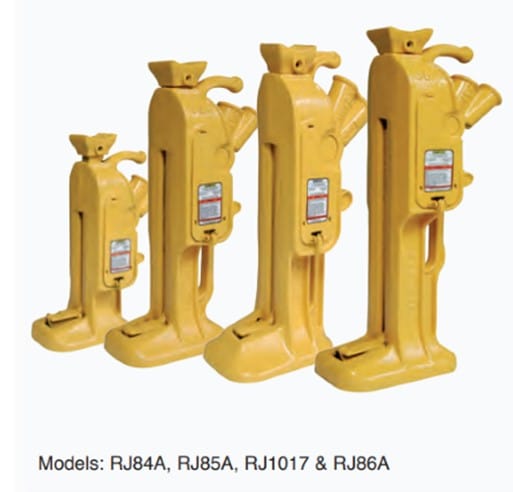

Mechanical Jacks
|
The SIMPLEX Advantage:
- 8 models to select from
- Double lever sockets for jacking in close quarters
- Drop-forged alloy steel, heat treated components
- Plated springs to resist corrosion
- Large base insures a firm foundation
- Supports full rated capacity on the toe or the cap
|
|
|
|
Model
|
Capacity
Support (tons)
|
Lifting (tons) |
Stoke (in.)
|
Toe Height Minimuim (in.)
|
Handle Effort Per Ton (lbs.)
|
Base Size (in.)
|
Weight (lbs.)
|
|
84A
|
5
|
5
|
7
|
1.75
|
32
|
5 X 7.35
|
28
|
|
85A
|
10
|
30
|
|
86A
|
13
|
35
|
|
1017
|
10
|
10
|
9.5
|
2
|
30
|
6 X 8.75
|
40
|
|
A1022
|
12
|
2.25
|
6.5 X 10.25
|
42
|
|
22B
|
48
|
70
|
|
A1538
|
15
|
8
|
22
|
—
|
32
|
8 X 8.25
|
62
|
|
24A
|
20
|
15
|
13
|
2.25
|
32
|
8 X 10.25
|
93
|
|
2029
|
18
|
8 X 11
|
104
|
|
|
|

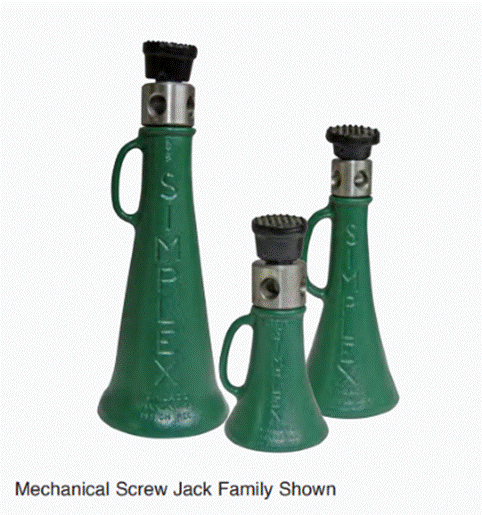

Screw Jacks
|
The SIMPLEX Advantage:
- 9 models to choose from.
- Four-way head assembly accommodates lever bar at four different positions.
- Drop forged serrated steel cap floats on a chrome-moly ball reducing friction by 88%.
- All housings are ductile iron and flared at the base to provide stability.
- Positive stop for safety.
|
|
|
|
Model
|
Sustaining Capacity (tons)
|
Closed Height (in.)
|
Stroke (in.)
|
Handle Effort Per Ton (lbs.)
|
Base Diameter (in.)
|
Weight
|
|
|
1.5 x 6
|
12
|
9.75
|
3.75
|
16
|
4.75
|
10
|
|
|
1.5 x 8
|
11.62
|
5.75
|
5.5
|
12
|
|
|
1.5 X 12
|
15.62
|
9.75
|
6.25
|
16
|
|
|
2 X 8
|
20
|
11.75
|
5
|
15
|
6
|
17
|
|
|
2 X 10
|
13.75
|
7
|
6.5
|
20
|
|
|
2 X 12
|
15.75
|
9
|
6.75
|
24
|
|
|
2.5 X 8
|
24
|
13
|
4.25
|
6.5
|
28
|
|
|
2.5 X 12
|
17
|
8.25
|
7.25
|
37
|
|
|
2.5 X 18
|
23
|
14.25
|
8.5
|
52
|
|
|
