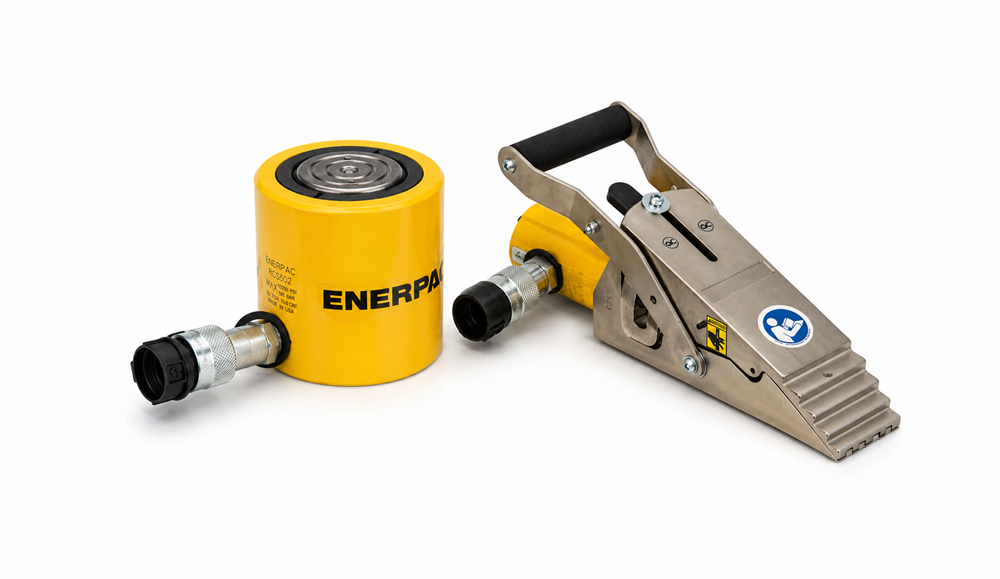

For Rent: Single Acting Flat & Wedge Jacks
Single acting flat and wedge jacks available for rent, ready when your project needs them.
CH Bull offers single acting flat and wedge jacks for rent in a range of capacities, stroke lengths and dimensions. Compare available configurations below to find the right equipment for your application.
Rental Equipment Options
5–30 Ton Flat Jacks
Several lower-capacity configurations available.
- Capacities from 5 to 30 tons
- Stroke lengths from 0.25″ to 0.63″
- Heights from 1.25″ to 2.3″
50–150 Ton Flat Jacks
Higher-capacity flat jack rental options.
- Capacities from 50 to 150 tons
- 0.63″ stroke
- Multiple sizes and weights available
Wedge Jacks
Two wedge jack configurations are available for rent.
- 0.75- and 1-ton capacities
- Stroke lengths of 3.7″ and 11.5″
- Multiple heights, widths and lengths available
Compare Available Jack Specifications
Flat Jack Specifications
| Capacity (Tons) | Stroke (in) | Height (in) | O.D. (in) | Weight (lbs) |
| 5 | 0.25 | 1.25 | 1.625 x 2.25 | 2.3 |
| 10 | 0.44 | 1.75 | 2.125 x 3.25 | 3.1 |
| 30 | 0.63 | 2.3 | 3.75 x 4.6 | 10 |
| 50 | 0.63 | 2.5 | 4.5 x 5 | 15 |
| 100 | 0.63 | 3.5 | 6 x 7 | 32 |
| 150 | 0.63 | 4 | 7.5 x 8 | 58 |
Wedge Jack Specifications
| Capacity (Tons) | Stroke (in) | Height (in) | Width & Length (in) | Weight (lbs) |
| 1 | 3.7 | 0.5 | 2.01 x 8.78 | 2.3 |
| 0.75 | 11.5 | 1.26 | 2.01 x 21.65 | 3.1 |
Not sure which jack you need? We’ll help you choose the right rental setup.
Why Rent from CH Bull
Right Equipment, Right Fit
We help you select the correct capacity and configuration for your job.
Ready-to-Use Equipment
All rental equipment is maintained, tested, and ready for deployment.
Flexible Rental Terms
Daily, weekly, and long-term rental options available.
Local Availability & Support
Fast access to equipment and expert assistance when you need it.
