Project Snapshop
Project: Cypress Freeway Retrofit Testing
Location: Oakland, California
Application: Full-scale testing of repaired freeway columns
Challenge: Apply controlled lateral and vertical forces to compare three seismic retrofit designs
Solution: A hydraulic jacking system with 1,000 tons of total capacity
Result: Three retrofit concepts were tested to failure, identifying the strongest repair approach
Following the 1989 Loma Prieta earthquake, portions of the elevated Cypress Freeway in Oakland suffered catastrophic damage. Several sections that remained standing were scheduled for demolition, giving Caltrans a rare opportunity to evaluate seismic retrofit concepts on full-size freeway structures.
CH Bull worked with Caltrans engineers, the University of California, and Christie Constructors to develop the hydraulic system used during the testing program.
The Challenge
The project team developed three potential retrofit designs for the freeway columns. Each repair needed to be tested under substantial lateral and vertical forces to determine how it would perform during a future seismic event.
Unlike laboratory testing, this work was conducted on existing full-scale structures. The hydraulic equipment needed to apply controlled loads at several column repairs and continue increasing the force until each configuration reached failure.

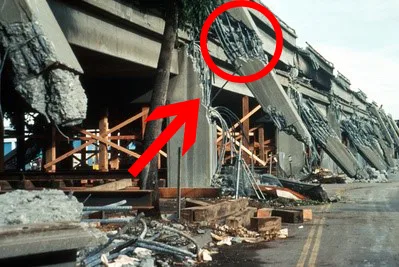

Images of the earthquake damage also revealed areas where insufficient spiral reinforcement around the vertical rebar contributed to the column failures.
The CH Bull Solution
CH Bull designed and supplied a hydraulic jacking system capable of generating approximately 1,000 tons of force.

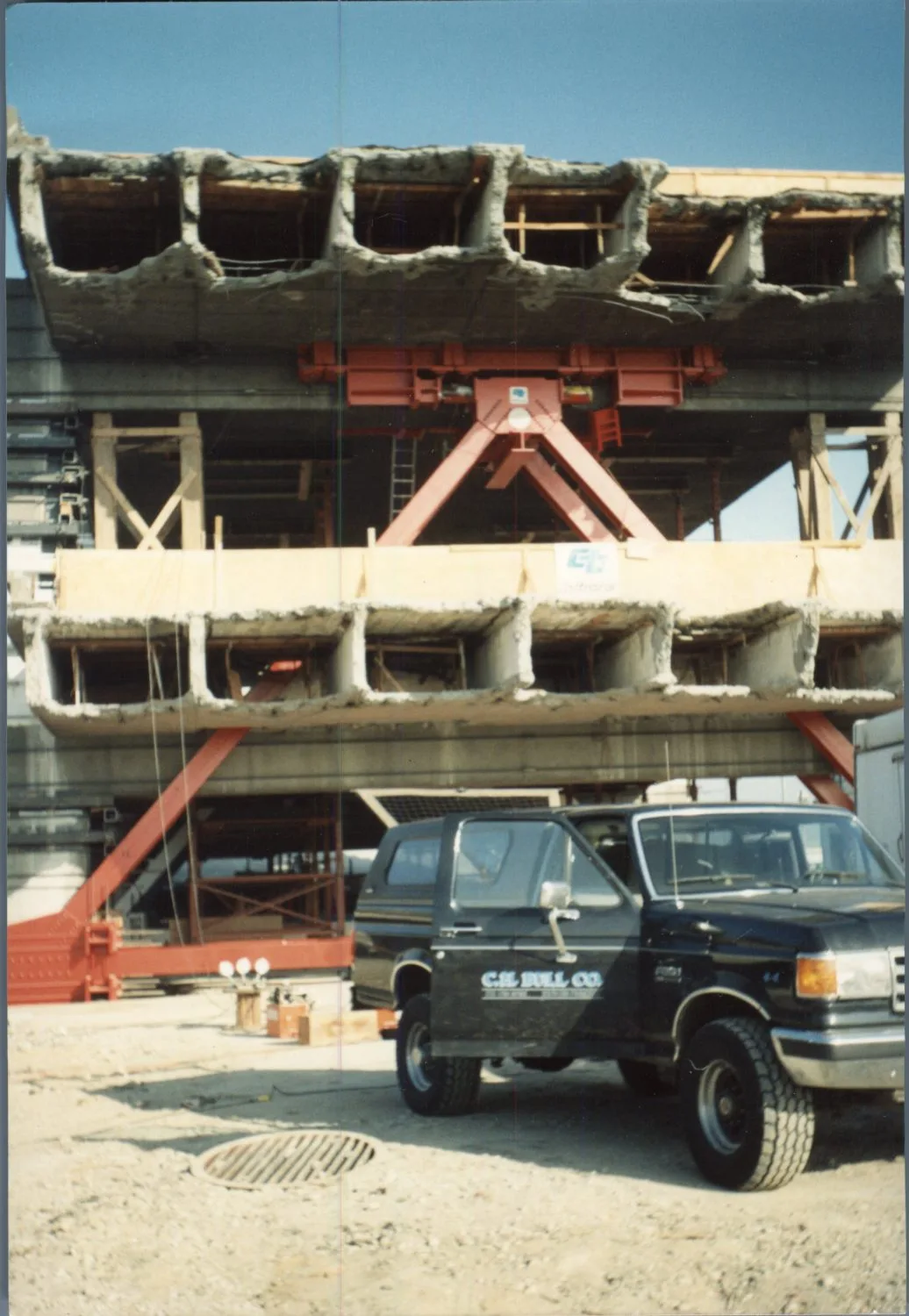

The equipment was positioned at the different repaired column locations and configured to apply both lateral and vertical loads. This allowed engineers to monitor how each retrofit design responded as the forces increased.
Testing the Retrofit Designs
Each of the three proposed retrofit solutions was tested to failure under controlled conditions. The full-scale tests allowed the engineering team to compare the strength and behavior of the different repairs using actual freeway columns rather than smaller test specimens.
One of the retrofit configurations performed significantly better than the others, providing valuable information for future seismic strengthening projects.
Project Outcome
The Cypress Structure testing program helped validate a more effective approach to repairing and strengthening similar elevated freeway and bridge columns.
By supplying the high-capacity hydraulic system needed to test the repaired structures under lateral and vertical loads, CH Bull supported an important post-earthquake engineering program that contributed to later seismic retrofit work throughout California and the western United States.
