For 3″ to 6″ (75-150mm) Drain Lines
Click to view Operators Manual

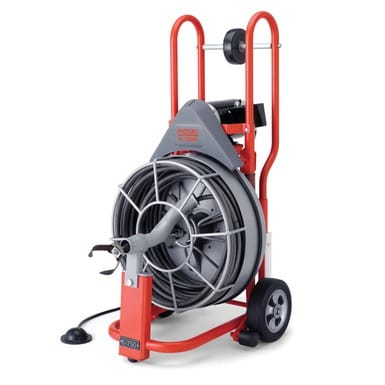

The K-750R is a self-contained drain cleaner ideal for lateral drain lines from 3″ to 6″. Easy-to-transport, narrow design for small entry ways and minimal setup make this machine ideal for tough mainline work. Comes equipped with a large blade assortment to handle numerous applications. Clears roots, debris and foreign objects out of main lines, storm drains, house laterals and leach lines.
Features –
Specifications –
| Motor | 1/2 HP, 115V, 60Hz Reversible Induction Motor |
| 200 RPM | |
| Air Activated Foot Switch | |
| Weight | 194 lbs. |
| Dual Kickstands | |
| New Torque Limiter Feature | |
| Lean, Well-Balanced Design for Easy One-Man Transport and Operation |
For 3″ to 6″ (75-150mm) Drain Lines
Click to view Operators Manual
The K-750R is a self-contained drain cleaner ideal for lateral drain lines from 3″ to 6″. Easy-to-transport, narrow design for small entry ways and minimal setup make this machine ideal for tough mainline work. Comes equipped with a large blade assortment to handle numerous applications. Clears roots, debris and foreign objects out of main lines, storm drains, house laterals and leach lines.
Features –
Specifications –
| Motor | 1/2 HP, 115V, 60Hz Reversible Induction Motor |
| 200 RPM | |
| Air Activated Foot Switch | |
| Weight | 194 lbs. |
| Dual Kickstands | |
| New Torque Limiter Feature | |
| Lean, Well-Balanced Design for Easy One-Man Transport and Operation |
Ordering Information –
|
Catalog Number
|
Model No.
|
Description |
Weight
|
|
|
lb.
|
kg
|
|||
|
K-750R
|
5/8" Open Cage Drum Machine w/5/8" x 100′ IW Solid Core Cable; 2", 3", 4" “C” Cutters; P-Trap Cutter; Spade Blade; Tool Box; Gloves. |
194
|
98
|
|
Inner Core (IC) Cables –
|
Catalog Number
|
Model No.
|
Description |
Weight
|
|
|
lb.
|
kg
|
|||
|
C-25
|
5/8" (16 mm) x 25′ IC Cable (7.6m) |
24
|
10.9
|
|
|
C-26
|
5/8" (16 mm) x 50′ IC Cable (15.2m) |
43
|
19.5
|
|
|
C-27
|
5/8" (16 mm) x 75′ IC Cable (22.9m) |
63
|
28.6
|
|
|
C-24
|
5/8" (16 mm) x 100′ IC Cable (30.5m) |
84
|
38.1
|
|
|
C-28
|
3/4" (20 mm) x 25′ IC Cable (7.6m) |
30
|
13.9
|
|
|
C-29
|
3/4" (20 mm) x 50′ IC Cable (15,2m) |
60
|
27.2
|
|
|
C-75
|
3/4" (20 mm) x 75′ IC Cable (22.9m) |
93
|
42.5
|
|
|
C-100
|
3/4" (20 mm) x 100′ IC Cable (30.5m) |
122
|
55.3
|
|
Hollow Core Cables –
|
Catalog Number
|
Model No.
|
Description |
Weight
|
|
|
lb.
|
kg
|
|||
|
C-27HC
|
5/8" (16 mm) x 75′ HC Cable (23) |
52 3/4
|
23.9
|
|
|
C-24HC
|
5/8" (16 mm) x 100′ HC Cable (30.5m) |
70 1/2
|
32.1
|
|
|
C-75HC
|
3/4" (20 mm) x 75′ HC Cable (23m) |
75
|
34.0
|
|
|
C-100HC
|
3/4" (20 mm) x 100′ HC Cable (30.5m) |
100
|
45.5
|
|
Tools and Replacement Blades – Fits 5/8″ (16 mm)and 3/4″ Cables-
|
Catalog Number
|
Model No.
|
Description |
|
T-403
|
P-Trap Cutter, 3" (75 mm) | |
|
T-404
|
P-Trap Cutter, 3 1/2" (87 mm) | |
|
T-406
|
Spade Cutter, 1 3/4" (45 mm) | |
|
T-407
|
Retrieving Auger 2 9/16" (65 mm) | |
|
T-408
|
Sawtooth Cutter, 3" (75 mm) | |
|
T-409
|
H-D Bulb Auger, 1 3/4" (45 mm) | |
|
T-411
|
Double Cutter, 2" (50 mm) | |
|
T-412
|
Double Cutter, 2 1/2" (65 mm) | |
|
T-413
|
Double Cutter, 3" (75 mm) | |
|
T-414
|
Double Cutter, 4" (110 mm) | |
|
T-416
|
Double Cutter, 6" (150 mm) | |
|
T-433
|
3-Blade Cutter 3" (75 mm) | |
|
T-434
|
3-Blade Cutter 4" (110 mm) | |
|
T-436
|
3-Blade Cutter 6" (150 mm) |
Leaders and Pig Tails –
|
Catalog Number
|
Model No.
|
Description |
Weight
|
|
|
lb.
|
kg
|
|||
|
92555
|
T-458
|
5/8" (16 mm) x 2′ (50 mm) Leader |
2
|
0.85
|
|
92560
|
T-468
|
3/4" (20 mm) x 2′ (50 mm) Leader |
2 3/4
|
1.25
|
|
44122
|
5/8" (16 mm) Pigtail, 4 1/2′ (1.4 m) Long |
2 1/2
|
1.13
|
|
|
44117
|
3/4" (20 mm) Pigtail, 6′ (1.8 m) Long |
3 1/2
|
1.59
|
|
Accessories –
|
Catalog Number
|
Model No.
|
Description |
Weight
|
|
|
lb.
|
kg
|
|||
|
A-7534
|
Drum Assembly w/3/4" (20 mm) Pigtail |
37 1/2
|
17.0
|
|
|
A-7558
|
Drum Assembly w/5/8" (16 mm) Pigtail |
33
|
15.0
|
|
|
A-75
|
AUTOFEED Assembly |
8
|
3.5
|
|
|
–
|
RIDGID Leather Drain Cleaning Gloves |
1/2
|
0.2
|
|
|
A-75PF
|
C-100IC Kit w/Tools, 3/4" (20 mm) x 100′ (30,5 m) |
8
|
3.5
|
|
| Front Guide Hose Assembly |
3
|
1.3
|
||
|
A-3
|
Tool Box |
5
|
2.3
|
|
|
–
|
RIDGID PVC Drain Cleaning Gloves |
1/2
|
0.2
|
|
Repair Fittings –
|
Catalog Number
|
Model No.
|
Description |
Weight
|
|
|
oz.
|
g
|
|||
|
31487
|
A-7570
|
5/8" (16 mm) Repair Splicer |
1 1/2
|
43
|
|
31492
|
A-7571
|
3/4" (20 mm) Repair Splicer |
2
|
57
|
|
92805
|
A-6582
|
5/8" (16 mm) Male Coupling |
1
|
28
|
|
92810
|
A-6583
|
5/8" (16 mm) Female Coupling |
2
|
57
|
|
92880
|
B-6840
|
3/4" (20 mm) Male Coupling |
1
|
28
|
|
92885
|
B-6841
|
3/4" (20 mm) Female Coupling |
2
|
57
|
