Industry Leading Design and Performance
Genies trailer mounted booms are an excellent value in high-reach equipment. The TZ-50 provides industry leading outreach and working range and the highest tow speed rating available. The TZ-50 also provides many unique features, such as hydraulic outriggers, automatic machine leveling and an optional hybrid DC/Gas engine.
135 Degree Jib Boom Working Range
A 4 ft 1 in (1.25 m) articulating jib boom allows you to position the platform above or below horizontal.
Easy to Transport

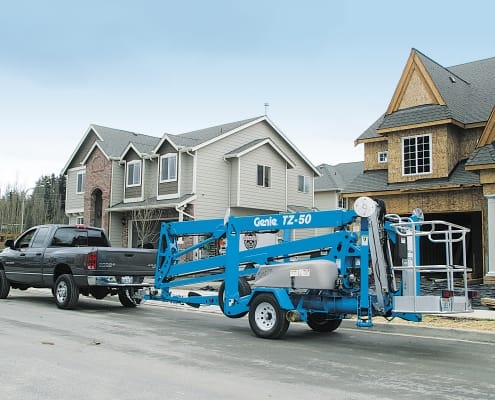

The TZ-50 is easily towed behind vehicles that have an adequate capacity, 2 in (50 mm) ball, and a Class 3 hitch. Several hitch receptacles are available. Genies maximum highway tow speed rating of 60 mph (97 km/h) is the highest in the industry, providing faster transportation to job sites.
Dual Jockey Wheels Heavy-duty jockey wheels allow for precise positioning of the machine during setup and transportation.
Large Outrigger Footpads Large outrigger foot pads effectively distribute the machine weight. Non-marking footpads are offered as an option.
Both ground and platform controls are easy to use and utilize symbols to simplify operation.
Automatic Leveling System (patents pending)
The exclusive Genie Automatic Leveling System is self-leveling and is standard equipment on all TZ-50 models. This system provides industry-leading 10 degrees leveling capability and allows the operator to hydraulically deploy the outriggers and automatically level the machine. Machine setup can be completed in less than 45 seconds when the operator deploys all four outriggers simultaneously.
The system self-levels the machine to 1 degree in all directions. The level sensor alarm will not sound unless the machine is over 21/2 degrees out of level. This built-in tolerance provides resistance to level sensor nuisance tripping, which can be a common occurrence on other trailer mounted booms. This feature increases productivity and sets the Genie TZ-50 apart from the competition.
Options and Accessories
Drive and Set Option The drive and set option provides the ability to drive the TZ-50 from the platform when it is in the fully lowered position. The drive and set option also provides outrigger deploying, retracting and automatic leveling functions from the platform when it is in the stowed position.
Hybrid DC/Gas Option The TZ-50 has an optional Hybrid DC/Gas Engine to allow charging machines in remote locations.
Platform Rotation A hydraulic rotate mechanism allows the operator to rotate the platform 80 degrees horizontally in each direction.
- 55 ft 6 in (17.1 m) working height*
- 29 ft 2 in (8.9 m) working outreach
- Hydraulic outriggers
- Outrigger interlocks
- Automatic leveling system
- Combination hitch, an adjustable height hitch coupler system with 2 ball coupler
- Variable speed control system
- AC wiring to platform
- Hydraulic surge brakes
- Parking brake
- Tilt alarm/sensor
- Dual jockey wheels
- Hour meter
Options and Accessories
- Hybrid DC/Gas
- Drive and set option includes larger battery
- Spare tire
- Battery charge indicator
- Fluorescent tube caddy
- Hydraulic platform rotation
- Non-marking outrigger footpads
- Operational warning light package (flashing beacon)
- Tool tray
- 2 5/16 in (6 cm) ball coupler
- 2 1/2 in (6.35 cm) I.D. Pintle ring coupler
- Clevis coupler
- ANSI A92.2
- CE Compliance
- AS 1418.10
