Available in both Traditional and Close Quarters, RIDGID is your source for manual ASTM F1807 PEX Crimp Tools.

Traditional ASTM F1807 PEX Crimp Tools

RIDGID’s Traditional PEX Crimp Tools are available 3/8” – 1” and are ideal for making PEX tubing connections in potable water and radiant heating applications. Over 20% lighter than other traditional-style crimp tools, these tools feature E3 ergonomic handles and come standard with a Go/No-Go Gauge.

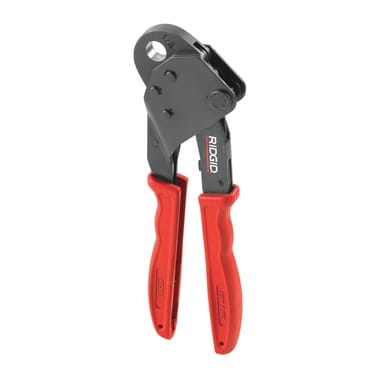

Close Quarters ASTM F1807 PEX Crimp Tools

Close Quarters Manual PEX Crimp Tools are the newest addition to the RIDGID® Crimp Tool line. With handle openings up to 71% smaller than traditional PEX Crimp Tools, contractors can now maneuver into tight spaces with ease. And, you’ll always be prepared with a built-in Go/No-Go Gauge – a RIDGID exclusive.

Click here to view catalog page


Available in both Traditional and Close Quarters, RIDGID is your source for manual ASTM F1807 PEX Crimp Tools.

Traditional ASTM F1807 PEX Crimp Tools

RIDGID’s Traditional PEX Crimp Tools are available 3/8” – 1” and are ideal for making PEX tubing connections in potable water and radiant heating applications. Over 20% lighter than other traditional-style crimp tools, these tools feature E3 ergonomic handles and come standard with a Go/No-Go Gauge.

Close Quarters ASTM F1807 PEX Crimp Tools

Close Quarters Manual PEX Crimp Tools are the newest addition to the RIDGID® Crimp Tool line. With handle openings up to 71% smaller than traditional PEX Crimp Tools, contractors can now maneuver into tight spaces with ease. And, you’ll always be prepared with a built-in Go/No-Go Gauge – a RIDGID exclusive.

Click here to view catalog page

Features –

Traditional ASTM F1807 PEX Crimp Tools

  • For use with ASTM F1807 black copper crimp rings and insert fittings for PEX tubing.
  • Reduced Weight- Over 20% Lighter than traditional PEX crimp tools.
  • Up To 33% Less Force Required to produce a crimp, compared to traditional PEX crimp tools.
  • Compact Tool Length for access to tight spaces.
  • Six tools available in (5) sizes: 3/8", 1/2", 5/8", 3/4", 1" and a Combo 1/2" & 3/4" Tool.
  • Easily adjustable lock screw for tool calibration.
  • All tools come standard with a Go/No-Go gauge.

    Close Quarters ASTM F1807 PEX Crimp Tools

  • For use with ASTM F1807 copper crimp ring PEX tubing connections.
  • Durable, Glass-Filled Polycarbonate E3™ Handles (Expert Engineered Ergonomics) provide increased comfort.
  • Available in ½" and ¾" sizes.
  • Easily adjustable cam for tool calibration.
  • Integrated Go/No-Go Gauge folds into handle for easy storage.

    Specifications –

    Application ASTM F1807 black copper crimp rings and insert fittings

    Traditional Tools –

    Catalog Number
    		 Description
    Length
    Weight
    in.
    mm
    lb.
    kg
    1/2" PEX Crimp Tool
    14 1/4
    361.95
    2 7/8
    1.24
    3/4" PEX Crimp Tool
    14 3/4
    374.65
    2 7/8
    1.24
    1" PEX Crimp Tool
    15 1/4
    387.35
    3
    1.36
    1/2" & 3/4" PEX Combo Tool
    15 1/2
    393.70
    3 1/2
    1.58

    Close Quarter Tools –

    Catalog Number
    		 Description
    Weight
    lb.
    kg
    1/2" Close Quarters Manual PEX Crimp Tools
    2 1/10
    0.95
    3/4" Close Quarters Manual PEX Crimp Tools
    2 3/10
    1.04

    Accessories –

    Catalog Number
    		 Description
    Weight
    lb.
    kg
    23473
    		 3/8"- 3/4" ASTM F 1807 Gauge
    1
    0.45
    1" ASTM F 1807 Gauge
    1
    0.45
    ASTM F 2098 Gauge
    1
    0.45
